Wireless Movement Controller
A MIDI-enabled device transmitting motion sensor data via Bluetooth for VJs and electronic musicians to control audio/visual elements through body movement.
The Wireless Movement Controller is a MIDI-enabled device transmitting motion sensor data via Bluetooth to macOS software, designed for performances by VJs and electronic musicians who control audio/visual elements through body movement.
Key Technical Specifications

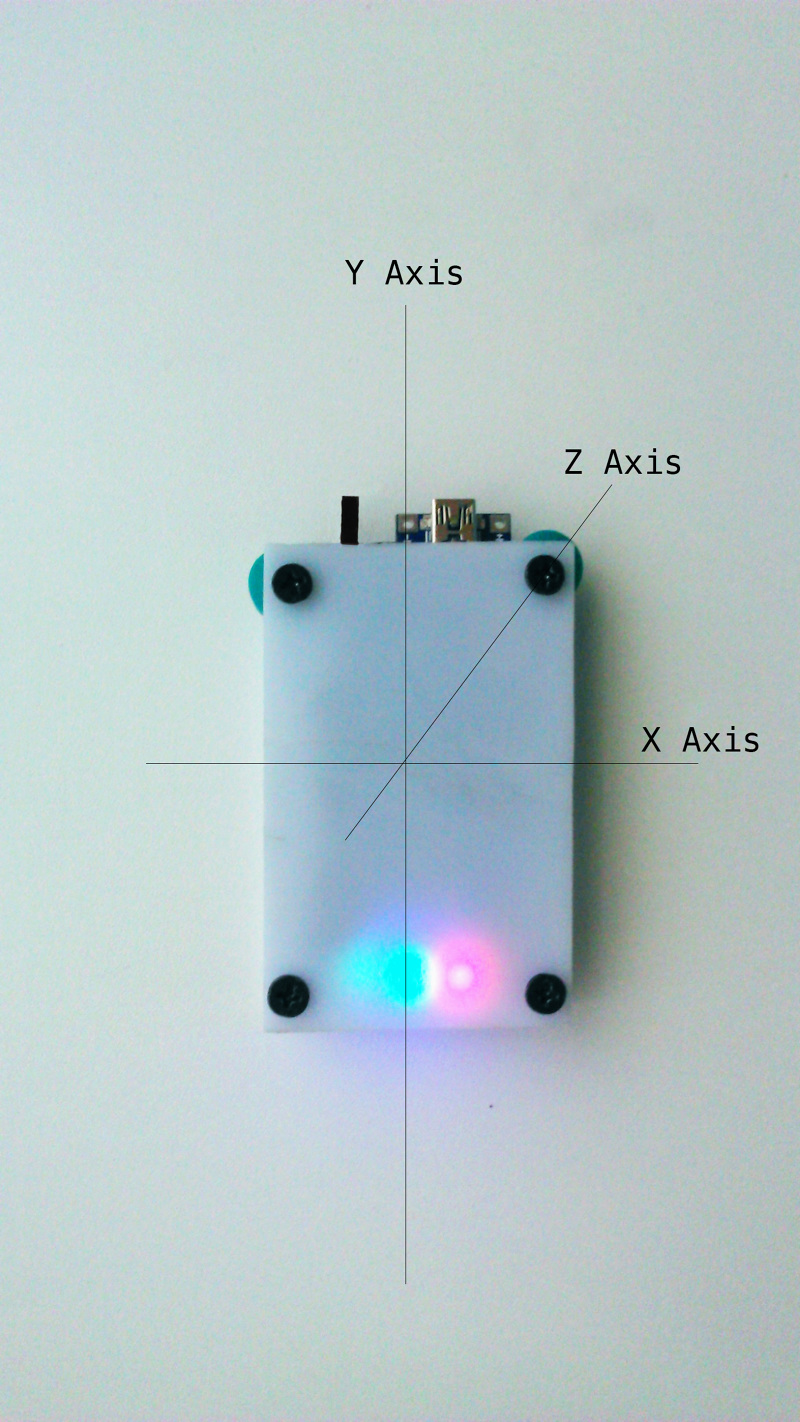

- Sensors: 2 sensors (accelerometer and gyroscope) measuring 6 axes of motion
- Sampling Rate: 40 times per second
- Wireless Range: Up to 10 meters via Bluetooth module
- Power: 3.7V Li-ion battery with 10-hour runtime capacity

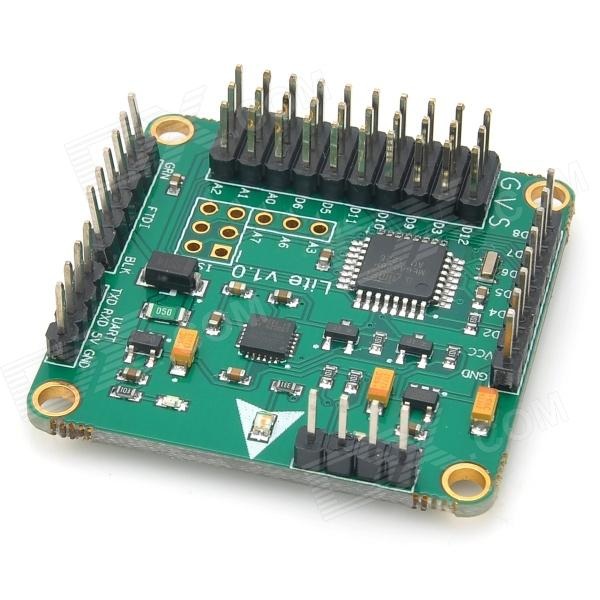

- Hardware: MultiWii sensor board with Bluetooth connectivity
- Software: OSX application with data smoothing and virtual MIDI output routing
- Compatible Software: Ableton Live, Max, Isadora, and MIDI hardware
Features
The interface displays real-time sensor feeds with configurable output modules. Users can map sensor data to specific MIDI channels and controllers, with selectable MIDI port outputs.
